產品介紹：
|
表面溫度與功率負載曲線圖(散熱板) |
|
 AH-5W/10W: Heatsink Required : 0.040 [1.0] Alum.Plate, 129 in2[832 cm2] or equiv.AH-25W: Heatsink Required : 0.040 [1.0] Alum.Plate, 167 in2[1077 cm2] or equiv. AH-50W: Heatsink Required : 0.059 [1.5] Alum.Plate, 291 in2[1877 cm2] or equiv. AH-100W: Heatsink Required : 0.125 [3.2] Alum.Plate, 294 in2[1896 cm2] or equiv. AH-250W: Heatsink Required : 0.125 [3.2] Alum.Plate, 895 in2[5780 cm2] or equiv. |
|
降功耗曲線圖 |
|
 為分解機箱面積適應高溫度環境產生功率衰減曲線.
曲率: A=5 & 10W,未用.B=25W,未用.C=50,100 & 250W,未用. |
|

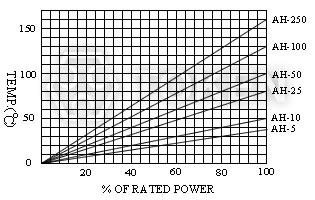

溫升曲線圖 |
|
 REDUCED HEAT SINK DERATING:
Derating is also required when recommended heat sink area is reduced. A = AH-5 and AH-10 size resistor. B = AH-25 size resistor C = AH-50, AH-100 and AH-250 size resistor. |
|
性 能 |
|
參數 |
測試條件
|
規格
|
|
短時間過載
|
5 × 額定功率-5sec.
|
Δ R±(2%+0.05Ω)Max.
|
|
負載壽命
|
額定負載 (底盤安裝)
25°C (1.5 Hour on 0.5 Hour OFF) 重復 1000 小時 |
Δ R±(5%+0.05Ω)Max.
|
|
溫度系數阻值
|
溫度 40°C 濕度 95% DC 100V 500Hr
|
Δ R±(5%+0.05Ω)Max.
|
|
絕緣耐壓
|
AHS-5 AHS-10 AHS-25 1000V
AHS-50 2000V AHS-100 AHS-250 3000V |
Δ R±(0.5%+0.05Ω)Max.
|
|
AHC-5 AHC-10 AHC-25 1000V
AHC-50 1500V AHC-100 AHC-250 2500V |
||
|
絕緣阻抗
|
在同樣的介質耐壓測試條件下， 加載500V和絕緣性阻值測試
|
1000MΩMin.
|
|
引出端強度
|
(1)扭轉測試 (30 sec Min)
AH-5 1kg， AH-10 2.3kg， AH-25， AH-50 4.5kg (2)扭轉測試(5~15sec) AH-100 27kg-cm， AH-250 36kg-cm |
Δ R±(0.2%+0.05Ω)Max.
|
|
振動
|
10c/s~50c/s~10c/s(1Min)-2小時
平行和正確的角度 |
Δ R±(0.2%+0.05Ω)Max.
|
|
如何訂購 |
|
AH |
S
|
10/10N
|
20Ω
|
D
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
 |
 |
 |
 |
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
